HEMA MC 30/40/60 Stationary Chain Mortiser

For production of doors, windows, shutters, fence posts and more

Highly productive tool with powerful motor (model MC 60 has two additional drive aggregates, for offset, door handle or keyhole drilling)
Operationally safe power tool
Flexible use chain mortiser
Minimal downtime on chain changes
Mortise chain can be pivoted to 45° (both directions)
Table can be angled to 45°
Double chain sets can be used
Automatic chain lubrication
Automatic mortise start on operational activation

detail 1 of hema stationary chain mortiser detail 2 of hema stationary chain mortiser

detail 3 of hema stationary chain mortiser detail 4 of hema stationary chain mortiser

Download printer-friendly information sheet (PDF)

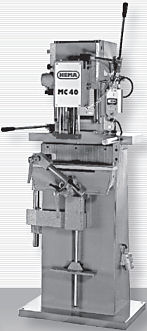

hema mc 40 stationary chain mortiser

MC 40

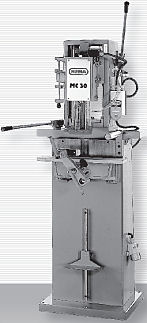

MC-30

*Above: HEMA MC 30 / 40 Stationary chain mortiser specs*
HEMA Stationary Chain Mortiser:	MC 30	MC 40
Three-phase motor	1.5 kW / 400V	2.2 kW / 400V
RPM	2800	2800
Mortise depth, max.	180 mm / 7"	180 mm / 7"
Chain width, max.	40 mm / 1-5/8"	40 mm / 1- 5/8"
Slot length, max.	200 mm / 8"	230 mm / 9 "
Cross width, mortise bar/chain	80 mm / 3"	150 mm / 6"
Chain set Type A	150 mm / 6"	150 mm / 6"
Table, tilt capability	45°	45°
Weight	210 kg / 462 lbs	350 kg / 770 lbs

*Above: HEMA MC 60 Stationary mortiser specs*
HEMA Stationary Chain Mortiser:	MC 60
Mortise motor	2.2 kW / 400V
RPM	2800
Offset motor	0.45 kW / 400V
RPM	6000
Drill motor	0.75
RPM	2800
Distance of vertical right hand spindles	85 mm / 3-1/8"
Stroke	70 mm / 2-7/8"
Distance of horizontal spindles	55-105 mm / 2-1/8 to 4"
Mortise depth, max.	180 mm / 7"
Slot length, max.	260 mm / 10-1/8"
Table size	600mm x 110mm
Biggest door width	1050mm / 41-3/8"
Exhaust duct diameter	80 mm / 7"
Weight	500 kg / 1100 lbs

Download printer-friendly information sheet (PDF)
