ZOBO Central Drilling Systems - System 3
Return to product description | System 2 page
Choice of centering inserts
A sharp centering point;
- A pilot drill bit to drill a pilot hole as you go;

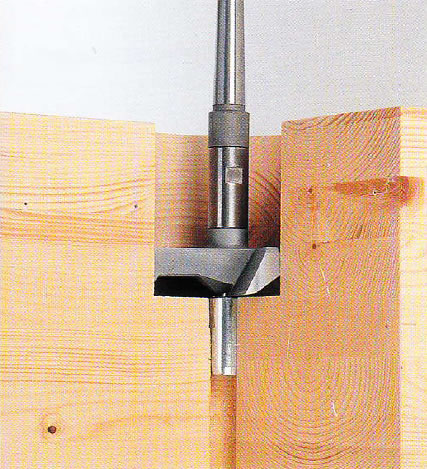

- Centering guide pins that fit into a pre-drilled pilot hole.
You will need:
- The ZOBO drill bit
- A replaceable pilot drill bit OR centering point OR guide pin

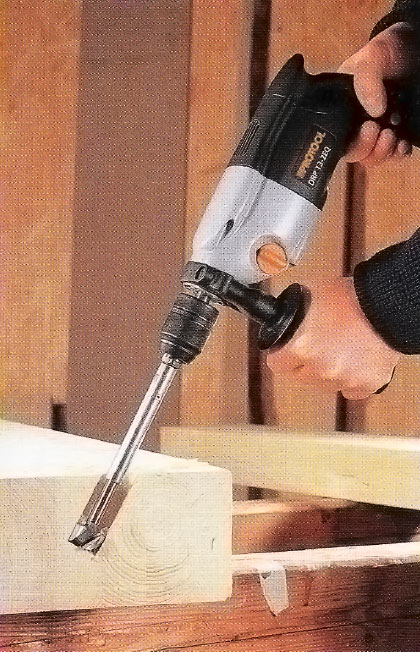

- Shank extension if drilling deep holes
ZOBO SYSTEM 3 DRILL BITS
- Centering points, pilot drill bits and pins use normal parallel shaft ends and set screws to fasten.
- Bit and shank are screwed together (removable, but always delivered together).
- Centering tools and pilot drill bits are not included with the large bit, so be sure to select the one you need.

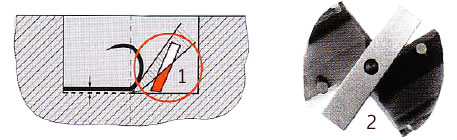

Drill bits above 100 mm / 4" are equipped as standard with blade limiter and chip groove. This effectively reduces the risk of the drill bit jamming in the material and kicking back the drilling machine. Blade limiters (right, 1) are set up by a setting gauge (right, 2) to the correct distance from the main cutting edges. Due to ground chip grooves, shorter chips are produced and easily removed from the drilled hole.
ZOBO SYSTEM 3 DRILL BITS --- IMPERIAL SIZES --- View/Close
| Chromium Steel | Tungsten Carbide Tipped | ||||||
|---|---|---|---|---|---|---|---|
 • For soft or hard wood • Shank diameter 20/13 mm • Total length 150 mm Uses 10 mm centering point, bit or pin, not included |
 • For hardwood and multi-layer boards • Shank diameter 20/13 mm • Total length 150 mm Uses 10 mm centering point, bit or pin, not included These bits are available on special order. Lead time for delivery: 7 weeks. |
||||||
| SKU | Drill dia. | Chromium Price (USD) |
Buy now | SKU | Drill dia. | Carbide Price (USD) |
Buy now |
| 1-1/2" | $267.30 | Add to cart | 1-1/2" | $273.90 | Add to cart | ||
| 1-3/4" | $294.80 | Add to cart | 1-3/4" | $302.50 | Add to cart | ||
| 2" | $309.73 | Add to cart | 2" | $319.72 | Add to cart | ||
| 2-1/8" | $324.71 | Add to cart | 2-1/8" | $347.80 | Add to cart | ||
| 2-1/4" | $338.83 | Add to cart | 2-1/4" | $394.13 | Add to cart | ||
| 2-3/8" | $355.52 | Add to cart | 2-3/8" | $416.90 | Add to cart | ||
| 2-1/2" | $363.99 | Add to cart | 2-1/2" | $429.28 | Add to cart | ||
| 2-3/4" | $383.11 | Add to cart | 2-3/4" | $469.41 | Add to cart | ||
| 3" | $422.21 | Add to cart | 3" | $580.00 | Add to cart | ||
| 3-1/4" | $496.63 | Add to cart | 3-1/4" | $627.20 | Add to cart | ||
| 3-1/2" | $521.77 | Add to cart | 3-1/2" | $695.59 | Add to cart | ||
| 3-3/4" | $533.83 | Add to cart | 3-3/4" | $709.71 | Add to cart | ||
ZOBO SYSTEM 3 ACCESSORIES FOR ABOVE IMPERIAL BITS
| Centering Points | |||
|---|---|---|---|
 |
|||
| SKU | Size | Price (USD) | Buy now |
| CP-WD 10x9 | 10 mm x 9 mm (3/8") useful length* | $28.08 | Add to cart |
| * This is the length that the point protrudes beyond the teeth of the drill bit. | |||
| Pilot Drill Bits | |||
 |
|||
| For System 3 bits 1-1/2" and over | |||
| CB-WD HSS 10x85 | 10 mm diameter x 85 mm useful length | $46.68 | Add to cart |
| Shank Extensions | |||
 |
|||
| Key 17mm. Shaft diameter 3/4", length 6" | $64.09 | Add to cart | |
| Key 17mm. Shaft diameter 3/4", length 12". | $87.39 | Add to cart | |
| Centering Guide Pins | ||
|---|---|---|
 Centering Guide Pins are machined 1/64" smaller than diameter specified. 2-1/4" long. Use our HolzMaster DoubleCut augers to drill pilot holes. |
||
| For 7/16" pilot hole | $40.56 | Add to cart |
| For 1/2" pilot hole | $41.50 | Add to cart |
| For 9/16" pilot hole | $42.44 | Add to cart |
| For 5/8" pilot hole | $44.30 | Add to cart |
| For 11/16" pilot hole | $46.18 | Add to cart |
| For 3/4" pilot hole | $46.80 | Add to cart |
| For 13/16" pilot hole | $49.60 | Add to cart |
| For 7/8" pilot hole | $50.86 | Add to cart |
| For 15/16" pilot hole | $52.72 | Add to cart |
| For 1" pilot hole | $53.36 | Add to cart |
| For 1-1/16" pilot hole | $54.92 | Add to cart |
ZOBO SYSTEM 3 DRILL BITS --- METRIC 15-30 mm --- View/Close
| Chromium Steel 15-30 mm | Tungsten Carbide Tipped 15-30 mm | ||||||
|---|---|---|---|---|---|---|---|
 • For soft or hard wood • Shank diameter 9 mm • Total length 100 mm Uses 6mm centering point, bit or pin, not included |
 • For hardwood and multi-layer boards • Shank diameter 9 mm • Total length 100 mm Uses 6mm centering point, bit or pin, not included These bits are available on special order. Lead time for delivery: 7 weeks. |
||||||
| SKU | Drill dia. | Chromium Price (USD) |
Buy now | SKU | Drill dia. | Carbide Price (USD) |
Buy now |
| WD C 15x100 S3 | 15 mm | $63.57 | Add to cart | WD HW 15x100 S3 | 15 mm | $104.57 | Add to cart |
| WD C 16x100 S3 | 16 mm | $64.94 | Add to cart | WD HW 16x100 S3 | 16 mm | $109.04 | Add to cart |
| WD C 17x100 S3 | 17 mm | $64.94 | Add to cart | WD HW 17x100 S3 | 17 mm | $111.11 | Add to cart |
| WD C 18x100 S3 | 18 mm | $64.94 | Add to cart | WD HW 18x100 S3 | 18 mm | $113.00 | Add to cart |
| WD C 19x100 S3 | 19 mm | $67.87 | Add to cart | WD HW 19x100 S3 | 19 mm | $114.90 | Add to cart |
| WD C 20x100 S3 | 20 mm | $69.60 | Add to cart | WD HW 20x100 S3 | 20 mm | $113.52 | Add to cart |
| WD C 21x100 S3 | 21 mm | $73.90 | Add to cart | WD HW 21x100 S3 | 21 mm | $118.69 | Add to cart |
| WD C 22x100 S3 | 22 mm | $78.03 | Add to cart | WD HW 22x100 S3 | 22 mm | $120.58 | Add to cart |
| WD C 23x100 S3 | 23 mm | $81.14 | Add to cart | WD HW 23x100 S3 | 23 mm | $123.51 | Add to cart |
| WD C 24x100 S3 | 24 mm | $84.92 | Add to cart | WD HW 24x100 S3 | 24 mm | $124.54 | Add to cart |
| WD C 25x100 S3 | 25 mm | $86.13 | Add to cart | WD HW 25x100 S3 | 25 mm | $123.51 | Add to cart |
| WD C 26x100 S3 | 26 mm | $93.02 | Add to cart | WD HW 26x100 S3 | 26 mm | $130.92 | Add to cart |
| WD C 27x100 S3 | 27 mm | $95.08 | Add to cart | WD HW 27x100 S3 | 27 mm | $132.99 | Add to cart |
| WD C 28x100 S3 | 28 mm | $99.40 | Add to cart | WD HW 28x100 S3 | 28 mm | $134.37 | Add to cart |
| WD C 29x100 S3 | 29 mm | $103.36 | Add to cart | WD HW 29x100 S3 | 29 mm | $136.43 | Add to cart |
| WD C 30x100 S3 | 30 mm | $105.25 | Add to cart | WD HW 30x100 S3 | 30 mm | $136.95 | Add to cart |
ZOBO SYSTEM 3 ACCESSORIES FOR ABOVE BITS 15 - 30 mm
| Centering Points | |||
|---|---|---|---|
|
|||
| SKU | Size | Price (USD) | Buy now |
| CP-WD 6x6,0 | 6 mm x 6 mm (1/4") useful length* for System 3 bits 15 mm to 50 mm | $20.33 | Add to cart |
| * This is the length that the point protrudes beyond the teeth of the drill bit. | |||
| Pilot Drill Bits | |||
|
|||
| For System 3 bits 15 to 50 mm: | |||
| CB-WD HSS 6x20 | 6 mm (1/4") diameter X 20 mm | $38.93 | Add to cart |
| CB-WD HSS 6x55 | 6 mm (1/4") diameter X 55 mm | $30.15 | Add to cart |
| Shank Extensions | |||
| For handheld drills | |||
9 mm diameter for bits 15-30 mm |
|||
| A-WD M6 9x150 MAN | 150 mm long (5.9") | $33.36 | Add to cart |
| A-WD M6 9x400 MAN | 400 mm long (15¾") | $60.60 | Add to cart |
| For stationary drills | |||
9 mm diameter for bits 15-30 mm |
|||
| A-WD M6 9x150 MEC | A-WD M6 9x150 MEC | $73.30 | Add to cart |
| Centering Guide Pins | |||
|---|---|---|---|
|
|||
| SKU | Size | Price (USD) | Buy now |
| GP-WD 6/6x10 | For 6 mm pilot hole. | $12.01 | Add to cart |
| GP-WD 7/6x10 | For 7 mm pilot hole. | $12.01 | Add to cart |
| GP-WD 8/6x10 | For 8 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 9/6x10 | For 9 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 10/6x10 | For 10 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 11/6x10 | For 11 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 12/6x10 | For 12 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 13/6x10 | For 13 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 14/6x10 | For 14 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 15/6x10 | For 15 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 16/6x10 | For 16 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 17/6x10 | For 17 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 18/6x10 | For 18 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 19/6x10 | For 19 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 20/6x10 | For 20 mm pilot hole. | $21.11 | Add to cart |
ZOBO SYSTEM 3 DRILL BITS --- METRIC 31-50 mm --- View/Close
| Chromium Steel 31-50 mm | Tungsten Carbide Tipped 31-50 mm | ||||||
|---|---|---|---|---|---|---|---|
• For soft or hard wood • Shank diameter 12 mm • Total length 100 mm Uses 6mm centering point, bit or pin, not included |
• For hardwood and multi-layer boards • Shank diameter 12 mm • Total length 100 mm Uses 6mm centering point, bit or pin, not included These bits are available on special order. Lead time for delivery: 7 weeks. |
||||||
| SKU | Drill dia. | Chromium Price (USD) |
Buy now | SKU | Drill dia. | Carbide Price (USD) |
Buy now |
| WD C 31x100 S3 | 31 mm | $109.38 | Add to cart | WD HW 31x100 S3 | 31 mm | $141.43 | Add to cart |
| WD C 32x100 S3 | 32 mm | $113.70 | Add to cart | WD HW 32x100 S3 | 32 mm | $142.98 | Add to cart |
| WD C 33x100 S3 | 33 mm | $115.41 | Add to cart | WD HW 33x100 S3 | 33 mm | $145.39 | Add to cart |
| WD C 34x100 S3 | 34 mm | $119.89 | Add to cart | WD HW 34x100 S3 | 34 mm | $146.76 | Add to cart |
| WD C 35x100 S3 | 35 mm | $119.89 | Add to cart | WD HW 35x100 S3 | 35 mm | $145.05 | Add to cart |
| WD C 36x100 S3 | 36 mm | $127.47 | Add to cart | WD HW 36x100 S3 | 36 mm | $151.59 | Add to cart |
| WD C 37x100 S3 | 37 mm | $129.71 | Add to cart | WD HW 37x100 S3 | 37 mm | $156.07 | Add to cart |
| WD C 38x100 S3 | 38 mm | $133.51 | Add to cart | WD HW 38x100 S3 | 38 mm | $159.17 | Add to cart |
| WD C 39x100 S3 | 39 mm | $137.63 | Add to cart | WD HW 39x100 S3 | 39 mm | $163.31 | Add to cart |
| WD C 40x100 S3 | 40 mm | $139.02 | Add to cart | WD HW 40x100 S3 | 40 mm | $170.53 | Add to cart |
| WD C 41x100 S3 | 41 mm | $145.90 | Add to cart | WD HW 41x100 S3 | 41 mm | $175.19 | Add to cart |
| WD C 42x100 S3 | 42 mm | $149.86 | Add to cart | WD HW 42x100 S3 | 42 mm | $181.05 | Add to cart |
| WD C 43x100 S3 | 43 mm | $151.59 | Add to cart | WD HW 43x100 S3 | 43 mm | $184.67 | Add to cart |
| WD C 44x100 S3 | 44 mm | $152.45 | Add to cart | WD HW 44x100 S3 | 44 mm | $190.34 | Add to cart |
| WD C 45x100 S3 | 45 mm | $151.42 | Add to cart | WD HW 45x100 S3 | 45 mm | $196.89 | Add to cart |
| WD C 46x100 S3 | 46 mm | $157.80 | Add to cart | WD HW 46x100 S3 | 46 mm | $207.23 | Add to cart |
| WD C 47x100 S3 | 47 mm | $171.74 | Add to cart | WD HW 47x100 S3 | 47 mm | $212.22 | Add to cart |
| WD C 48x100 S3 | 48 mm | $177.25 | Add to cart | WD HW 48x100 S3 | 48 mm | $228.25 | Add to cart |
| WD C 49x100 S3 | 49 mm | $182.42 | Add to cart | WD HW 49x100 S3 | 49 mm | $245.30 | Add to cart |
| WD C 50x100 S3 | 50 mm | $150.38 | Add to cart | WD HW 50x100 S3 | 50 mm | $261.49 | Add to cart |
ZOBO SYSTEM 3 ACCESSORIES FOR ABOVE BITS 30-50 mm
| Centering Points | |||
|---|---|---|---|
|
|||
| SKU | Size | Price (USD) | Buy now |
| CP-WD 6x6,0 | 6 mm x 6 mm (1/4") useful length* for System 3 bits 15 mm to 50 mm | $20.33 | Add to cart |
| * This is the length that the point protrudes beyond the teeth of the drill bit. | |||
| Pilot Drill Bits | |||
|
|||
| For System 3 bits 15 to 50 mm: | |||
| CB-WD HSS 6x20 | 6 mm (1/4") diameter X 20 mm | $38.93 | Add to cart |
| CB-WD HSS 6x55 | 6 mm (1/4") diameter X 55 mm | $30.15 | Add to cart |
| Shank Extensions | |||
| For handheld drills | |||
12 mm diameter for bits 31-50 mm |
|||
| A-WD M8 12x150 MAN | 12 mm dia. X 150 mm long (5.9") | $42.21 | Add to cart |
| A-WD M8 12x400 MAN | 400 mm long (15¾") | $72.01 | Add to cart |
| For stationary drills | |||
| 12 mm diameter for bits 31-50 mm |
|||
| A-WD M8 12x150 MEC | 12 mm dia. X 150 mm long (5.9") | $92.32 | Add to cart |
| Centering Guide Pins | |||
|---|---|---|---|
|
|||
| SKU | Size | Price (USD) | Buy now |
| GP-WD 6/6x10 | For 6 mm pilot hole. | $12.01 | Add to cart |
| GP-WD 7/6x10 | For 7 mm pilot hole. | $12.01 | Add to cart |
| GP-WD 8/6x10 | For 8 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 9/6x10 | For 9 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 10/6x10 | For 10 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 11/6x10 | For 11 mm pilot hole. | $14.25 | Add to cart |
| GP-WD 12/6x10 | For 12 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 13/6x10 | For 13 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 14/6x10 | For 14 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 15/6x10 | For 15 mm pilot hole. | $18.70 | Add to cart |
| GP-WD 16/6x10 | For 16 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 17/6x10 | For 17 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 18/6x10 | For 18 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 19/6x10 | For 19 mm pilot hole. | $21.11 | Add to cart |
| GP-WD 20/6x10 | For 20 mm pilot hole. | $21.11 | Add to cart |
ZOBO SYSTEM 3 DRILL BITS --- METRIC 50-75 mm --- View/Close
| Chromium Steel 50-75 mm | Tungsten Carbide Tipped 50-75 mm | ||||||
|---|---|---|---|---|---|---|---|
• For soft or hard wood • Shank diameter 20/13 mm • Total length 150 mm Uses 10 mm centering point, bit or pin, not included |
• For hardwood and multi-layer boards • Shank diameter 20/13 mm • Total length 150 mm Uses 10 mm centering point, bit or pin, not included These bits are available on special order. Lead time for delivery: 7 weeks. |
||||||
| SKU | Drill dia. | Chromium Price (USD) |
Buy now | SKU | Drill dia. | Carbide Price (USD) |
Buy now |
| WD C 50x150 S3 | 50 mm | $300.60 | Add to cart | WD HW 50x150 S3 | 50 mm | $305.59 | Add to cart |
| WD C 51x150 S3 | 51 mm | $309.73 | Add to cart | WD HW 51x150 S3 | 51 mm | $319.72 | Add to cart |
| WD C 52x150 S3 | 52 mm | $312.65 | Add to cart | WD HW 52x150 S3 | 52 mm | $336.77 | Add to cart |
| WD C 53x150 S3 | 53 mm | $314.72 | Add to cart | WD HW 53x150 S3 | 53 mm | $342.79 | Add to cart |
| WD C 54x150 S3 | 54 mm | $324.71 | Add to cart | WD HW 54x150 S3 | 54 mm | $347.80 | Add to cart |
| WD C 55x150 S3 | 55 mm | $326.78 | Add to cart | WD HW 55x150 S3 | 55 mm | $354.86 | Add to cart |
| WD C 56x150 S3 | 56 mm | $337.80 | Add to cart | WD HW 56x150 S3 | 56 mm | $376.05 | Add to cart |
| WD C 57x150 S3 | 57 mm | $338.83 | Add to cart | WD HW 57x150 S3 | 57 mm | $394.13 | Add to cart |
| WD C 58x150 S3 | 58 mm | $340.90 | Add to cart | WD HW 58x150 S3 | 58 mm | $399.12 | Add to cart |
| WD C 59x150 S3 | 59 mm | $341.76 | Add to cart | WD HW 59x150 S3 | 59 mm | $404.12 | Add to cart |
| WD C 60x150 S3 | 60 mm | $335.73 | Add to cart | WD HW 60x150 S3 | 60 mm | $397.05 | Add to cart |
| WD C 61x150 S3 | 61 mm | $347.80 | Add to cart | WD HW 61x150 S3 | 61 mm | $414.12 | Add to cart |
| WD C 62x150 S3 | 62 mm | $353.83 | Add to cart | WD HW 62x150 S3 | 62 mm | $418.24 | Add to cart |
| WD C 63x150 S3 | 63 mm | $359.85 | Add to cart | WD HW 63x150 S3 | 63 mm | $423.25 | Add to cart |
| WD C 64x150 S3 | 64 mm | $363.99 | Add to cart | WD HW 64x150 S3 | 64 mm | $429.28 | Add to cart |
| WD C 65x150 S3 | 65 mm | $357.95 | Add to cart | WD HW 65x150 S3 | 65 mm | $421.18 | Add to cart |
| WD C 66x150 S3 | 66 mm | $371.91 | Add to cart | WD HW 66x150 S3 | 66 mm | $448.39 | Add to cart |
| WD C 67x150 S3 | 67 mm | $373.98 | Add to cart | WD HW 67x150 S3 | 67 mm | $460.45 | Add to cart |
| WD C 68x150 S3 | 68 mm | $382.07 | Add to cart | WD HW 68x150 S3 | 68 mm | $465.44 | Add to cart |
| WD C 69x150 S3 | 69 mm | $393.10 | Add to cart | WD HW 69x150 S3 | 69 mm | $470.44 | Add to cart |
| WD C 70x150 S3 | 70 mm | $383.11 | Add to cart | WD HW 70x150 S3 | 70 mm | $469.41 | Add to cart |
| WD C 71x150 S3 | 71 mm | $397.06 | Add to cart | WD HW 71x150 S3 | 71 mm | $544.86 | Add to cart |
| WD C 72x150 S3 | 72 mm | $400.16 | Add to cart | WD HW 72x150 S3 | 72 mm | $549.86 | Add to cart |
| WD C 73x150 S3 | 73 mm | $406.19 | Add to cart | WD HW 73x150 S3 | 73 mm | $554.85 | Add to cart |
| WD C 74x150 S3 | 74 mm | $411.18 | Add to cart | WD HW 74x150 S3 | 74 mm | $560.88 | Add to cart |
| WD C 75x150 S3 | 75 mm | $404.12 | Add to cart | WD HW 75x150 S3 | 75 mm | $557.95 | Add to cart |
Accessories for ZOBO System 3 Drill Bits 50-75 mm
| ZOBO SYSTEM 3 ACCESSORIES | |||
|---|---|---|---|
| Centering Points | |||
|
|||
| SKU | Size | Price (USD) | Buy now |
| CP-WD 10x9 | 10 mm x 9 mm (3/8") useful length* for System 3 bits 50 mm to 130 mm | $28.08 | Add to cart |
| * This is the length that the point protrudes beyond the teeth of the drill bit. | |||
| Pilot Drill Bits | |||
|
|||
| For System 3 bits 50 to 130 mm: | |||
| CB-WD HSS 10x85 | 10 mm diameter x 85 mm useful length | $46.68 | Add to cart |
| Shank Extensions | |||
| For handheld drills | |||
| 12 mm diameter for bits 31-50 mm |
|||
| A-WD M8 12x150 MAN | 12 mm dia. X 150 mm long (5.9") | $42.21 | Add to cart |
| A-WD M8 12x400 MAN | 400 mm long (15¾") | $72.01 | Add to cart |
| For stationary drills | |||
| For bits 50-130 mm |
|||
| A-WD M12 20x40 M12 | For bits 50-130 mm. Key 17mm. Shaft diameter 20mm, length 40mm. | $59.50 | Add to cart |
| A-WD M12 20x300 M12 | For bits 50-130 mm. Key 17mm. Shaft diameter 20mm, length 300mm. | $85.13 | Add to cart |
| ZOBO SYSTEM 3 ACCESSORIES | |||
|---|---|---|---|
| Centering Guide Pins | |||
For System 3 bits 50-130 mm long with 10 mm center hole. For use on pilot holes of diameter specified. 57 mm long. |
|||
| GP-WD 10,5/10x57 | For 11 mm pilot hole | 22.31 | Add to cart |
| GP-WD 11,5/10x57 | For 12 mm pilot hole | 22.83 | Add to cart |
| GP-WD 12,5/10x57 | For 13 mm pilot hole | 23.34 | Add to cart |
| GP-WD 13,5/10x57 | For 14 mm pilot hole | 23.85 | Add to cart |
| GP-WD 14,5/10x57 | For 15 mm pilot hole | 24.37 | Add to cart |
| GP-WD 15,5/10x57 | For 16 mm pilot hole | 24.88 | Add to cart |
| GP-WD 16,5/10x57 | For 17 mm pilot hole | 25.40 | Add to cart |
| GP-WD 17,5/10x57 | For 18 mm pilot hole | 25.74 | Add to cart |
| GP-WD 18,5/10x57 | For 19 mm pilot hole | 26.26 | Add to cart |
| GP-WD 19,5/10x57 | For 20 mm pilot hole | 26.94 | Add to cart |
| GP-WD 20,5/10x57 | For 21 mm pilot hole | 27.28 | Add to cart |
| GP-WD 21,5/10x57 | For 22 mm pilot hole | 27.97 | Add to cart |
| GP-WD 22,5/10x57 | For 23 mm pilot hole | 28.31 | Add to cart |
| GP-WD 23,5/10x57 | For 24 mm pilot hole | 29.00 | Add to cart |
| GP-WD 24,5/10x57 | For 25mm pilot hole | 29.35 | Add to cart |
| GP-WD 25,5/10x57 | For 26 mm pilot hole | 30.21 | Add to cart |
ZOBO SYSTEM 3 DRILL BITS --- METRIC 76-100 mm --- View/Close
| Chromium Steel 76-100 mm | Tungsten Carbide Tipped 76-100 mm | ||||||
|---|---|---|---|---|---|---|---|
• For soft or hard wood • Shank diameter 20/13 mm • Total length 150 mm Uses 10 mm centering point, bit or pin, not included |
• For hardwood and multi-layer boards • Shank diameter 20/13 mm • Total length 150 mm Uses 10 mm centering point, bit or pin, not included These bits are available on special order. Lead time for delivery: 7 weeks. |
||||||
| SKU | Drill dia. | Chromium Price (USD) |
Buy now | SKU | Drill dia. | Carbide Price (USD) |
Buy now |
| WD C 76x150 S3 | 76 mm | $422.21 | Add to cart | WD HW 76x150 S3 | 76 mm | $580.00 | Add to cart |
| WD C 77x150 S3 | 77 mm | $427.21 | Add to cart | WD HW 77x150 S3 | 77 mm | $584.99 | Add to cart |
| WD C 78x150 S3 | 78 mm | $432.38 | Add to cart | WD HW 78x150 S3 | 78 mm | $591.02 | Add to cart |
| WD C 79x150 S3 | 79 mm | $438.23 | Add to cart | WD HW 79x150 S3 | 79 mm | $597.06 | Add to cart |
| WD C 80x150 S3 | 80 mm | $430.31 | Add to cart | WD HW 80x150 S3 | 80 mm | $592.05 | Add to cart |
| WD C 81x150 S3 | 81 mm | $466.48 | Add to cart | WD HW 81x150 S3 | 81 mm | $616.18 | Add to cart |
| WD C 82x150 S3 | 82 mm | $484.57 | Add to cart | WD HW 82x150 S3 | 82 mm | $621.17 | Add to cart |
| WD C 83x150 S3 | 83 mm | $496.63 | Add to cart | WD HW 83x150 S3 | 83 mm | $627.20 | Add to cart |
| WD C 84x150 S3 | 84 mm | $509.72 | Add to cart | WD HW 84x150 S3 | 84 mm | $632.19 | Add to cart |
| WD C 85x150 S3 | 85 mm | $500.59 | Add to cart | WD HW 85x150 S3 | 85 mm | $619.28 | Add to cart |
| WD C 86x150 S3 | 86 mm | $517.64 | Add to cart | WD HW 86x150 S3 | 86 mm | $676.47 | Add to cart |
| WD C 87x150 S3 | 87 mm | $519.71 | Add to cart | WD HW 87x150 S3 | 87 mm | $683.53 | Add to cart |
| WD C 88x150 S3 | 88 mm | $520.74 | Add to cart | WD HW 88x150 S3 | 88 mm | $689.56 | Add to cart |
| WD C 89x150 S3 | 89 mm | $521.77 | Add to cart | WD HW 89x150 S3 | 89 mm | $695.59 | Add to cart |
| WD C 90x150 S3 | 90 mm | $506.62 | Add to cart | WD HW 90x150 S3 | 90 mm | $680.60 | Add to cart |
| WD C 91x150 S3 | 91 mm | $529.71 | Add to cart | WD HW 91x150 S3 | 91 mm | $706.61 | Add to cart |
| WD C 92x150 S3 | 92 mm | $535.73 | Add to cart | WD HW 92x150 S3 | 92 mm | $713.67 | Add to cart |
| WD C 93x150 S3 | 93 mm | $536.77 | Add to cart | WD HW 93x150 S3 | 93 mm | $718.67 | Add to cart |
| WD C 94x150 S3 | 94 mm | $537.80 | Add to cart | WD HW 94x150 S3 | 94 mm | $724.70 | Add to cart |
| WD C 95x150 S3 | 95 mm | $533.83 | Add to cart | WD HW 95x150 S3 | 95 mm | $709.71 | Add to cart |
| WD C 96x150 S3 | 96 mm | $576.04 | Add to cart | WD HW 96x150 S3 | 96 mm | $736.76 | Add to cart |
| WD C 97x150 S3 | 97 mm | $601.18 | Add to cart | WD HW 97x150 S3 | 97 mm | $742.79 | Add to cart |
| WD C 98x150 S3 | 98 mm | $625.31 | Add to cart | WD HW 98x150 S3 | 98 mm | $748.81 | Add to cart |
| WD C 99x150 S3 | 99 mm | $651.31 | Add to cart | WD HW 99x150 S3 | 99 mm | $754.84 | Add to cart |
| WD C 100x150 S3 | 100 mm | $667.51 | Add to cart | WD HW 100x150 S3 | 100 mm | $735.72 | Add to cart |
ZOBO System 3 Accessories for Drill Bits 76-100 mm
| ZOBO SYSTEM 3 ACCESSORIES | |||
|---|---|---|---|
| Centering Points | |||
|
|||
| SKU | Size | Price (USD) | Buy now |
| CP-WD 10x9 | 10 mm x 9 mm (3/8") useful length* for System 3 bits 50 mm to 130 mm | $28.08 | Add to cart |
| * This is the length that the point protrudes beyond the teeth of the drill bit. | |||
| Pilot Drill Bits | |||
|
|||
| For System 3 bits 50 to 130 mm: | |||
| CB-WD HSS 10x85 | 10 mm diameter x 85 mm useful length | $46.68 | Add to cart |
| Shank Extensions | |||
| For stationary drills | |||
| For bits 50-130 mm |
|||
| A-WD M12 20x40 M12 | For bits 50-130 mm. Key 17mm. Shaft diameter 20mm, length 40mm. | $59.50 | Add to cart |
| A-WD M12 20x300 M12 | For bits 50-130 mm. Key 17mm. Shaft diameter 20mm, length 300mm. | $85.13 | Add to cart |
| ZOBO SYSTEM 3 ACCESSORIES | |||
|---|---|---|---|
| Centering Guide Pins | |||
For System 3 bits 50-130 mm long with 10 mm center hole. For use on pilot holes of diameter specified. 57 mm long. |
|||
| GP-WD 10,5/10x57 | For 11 mm pilot hole | $22.31 | Add to cart |
| GP-WD 11,5/10x57 | For 12 mm pilot hole | $22.83 | Add to cart |
| GP-WD 12,5/10x57 | For 13 mm pilot hole | $23.34 | Add to cart |
| GP-WD 13,5/10x57 | For 14 mm pilot hole | $23.85 | Add to cart |
| GP-WD 14,5/10x57 | For 15 mm pilot hole | $24.37 | Add to cart |
| GP-WD 15,5/10x57 | For 16 mm pilot hole | $24.88 | Add to cart |
| GP-WD 16,5/10x57 | For 17 mm pilot hole | $25.40 | Add to cart |
| GP-WD 17,5/10x57 | For 18 mm pilot hole | $25.74 | Add to cart |
| GP-WD 18,5/10x57 | For 19 mm pilot hole | $26.26 | Add to cart |
| GP-WD 19,5/10x57 | For 20 mm pilot hole | $26.94 | Add to cart |
| GP-WD 20,5/10x57 | For 21 mm pilot hole | $27.28 | Add to cart |
| GP-WD 21,5/10x57 | For 22 mm pilot hole | $27.97 | Add to cart |
| GP-WD 22,5/10x57 | For 23 mm pilot hole | $28.31 | Add to cart |
| GP-WD 23,5/10x57 | For 24 mm pilot hole | $29.00 | Add to cart |
| GP-WD 24,5/10x57 | For 25mm pilot hole | $29.35 | Add to cart |
| GP-WD 25,5/10x57 | For 26 mm pilot hole | $30.21 | Add to cart |
ZOBO SYSTEM 3 DRILL BITS --- METRIC 100-130 mm --- View/Close
| Chromium Steel 101-130 mm | |||
|---|---|---|---|
 • For soft or hard wood • Shank diameter 30/16 mm • Total length 150 mm Uses 10 mm centering point, bit or pin, not included |
|||
| SKU | Drill dia. | Chromium Price (USD) |
Buy now |
| WD C 101x150 S3 - STL | 101 mm | $809.11 | Add to cart |
| WD C 102x150 S3 - STL | 102 mm | $816.17 | Add to cart |
| WD C 103x150 S3 - STL | 103 mm | $823.23 | Add to cart |
| WD C 104x150 S3 - STL | 104 mm | $830.29 | Add to cart |
| WD C 105x150 S3 - STL | 105 mm | $844.42 | Add to cart |
| WD C 106x150 S3 - STL | 106 mm | $851.31 | Add to cart |
| WD C 107x150 S3 - STL | 107 mm | $858.37 | Add to cart |
| WD C 108x150 S3 - STL | 108 mm | $865.44 | Add to cart |
| WD C 109x150 S3 - STL | 109 mm | $872.50 | Add to cart |
| WD C 110x150 S3 - STL | 110 mm | $879.56 | Add to cart |
| WD C 111x150 S3 - STL | 111 mm | $886.62 | Add to cart |
| WD C 112x150 S3 - STL | 112 mm | $893.51 | Add to cart |
| WD C 113x150 S3 - STL | 113 mm | $900.57 | Add to cart |
| WD C 114x150 S3 - STL | 114 mm | $903.67 | Add to cart |
| WD C 115x150 S3 - STL | 115 mm | $904.71 | Add to cart |
| WD C 116x150 S3 - STL | 116 mm | $906.61 | Add to cart |
| WD C 117x150 S3 - STL | 117 mm | $908.68 | Add to cart |
| WD C 118x150 S3 - STL | 118 mm | $914.71 | Add to cart |
| WD C 119x150 S3 - STL | 119 mm | $921.77 | Add to cart |
| WD C 120x150 S3 - STL | 120 mm | $944.85 | Add to cart |
| WD C 121x150 S3 - STL | 121 mm | $951.91 | Add to cart |
| WD C 122x150 S3 - STL | 122 mm | $957.94 | Add to cart |
| WD C 123x150 S3 - STL | 123 mm | $966.03 | Add to cart |
| WD C 124x150 S3 - STL | 124 mm | $972.93 | Add to cart |
| WD C 125x150 S3 - STL | 125 mm | $979.99 | Add to cart |
| WD C 126x150 S3 - STL | 126 mm | $987.05 | Add to cart |
| WD C 127x150 S3 - STL | 127 mm | $993.08 | Add to cart |
| WD C 128x150 S3 - STL | 128 mm | $1,000.14 | Add to cart |
| WD C 129x150 S3 - STL | 129 mm | $1,007.20 | Add to cart |
| WD C 130x150 S3 - STL | 130 mm | $1,014.27 | Add to cart |
| Larger sizes and custom sizes up to 200 mm available on special order. | |||
| ZOBO SYSTEM 3 ACCESSORIES | |||
|---|---|---|---|
| Centering Points | |||
|
|||
| SKU | Size | Price (USD) | Buy now |
| CP-WD 10x9 | 10 mm x 9 mm (3/8") useful length* for System 3 bits 50 mm to 130 mm | $28.08 | Add to cart |
| * This is the length that the point protrudes beyond the teeth of the drill bit. | |||
| Pilot Drill Bits | |||
|
|||
| For System 3 bits 50 to 130 mm: | |||
| CB-WD HSS 10x85 | 10 mm diameter x 85 mm useful length | $46.68 | Add to cart |
| Shank Extensions | |||
| For stationary drills | |||
| For bits 50-130 mm |
|||
| A-WD M12 20x40 M12 | For bits 50-130 mm. Key 17mm. Shaft diameter 20mm, length 40mm. | $59.50 | Add to cart |
| A-WD M12 20x300 M12 | For bits 50-130 mm. Key 17mm. Shaft diameter 20mm, length 300mm. | $85.13 | Add to cart |
| Centering Guide Pins | |||
|---|---|---|---|
For System 3 bits 50-130 mm long with 10 mm center hole. For use on pilot holes of diameter specified. 57 mm long. |
|||
| GP-WD 10,5/10x57 | For 11 mm pilot hole | $22.31 | Add to cart |
| GP-WD 11,5/10x57 | For 12 mm pilot hole | $22.83 | Add to cart |
| GP-WD 12,5/10x57 | For 13 mm pilot hole | $23.34 | Add to cart |
| GP-WD 13,5/10x57 | For 14 mm pilot hole | $23.85 | Add to cart |
| GP-WD 14,5/10x57 | For 15 mm pilot hole | $24.37 | Add to cart |
| GP-WD 15,5/10x57 | For 16 mm pilot hole | $24.88 | Add to cart |
| GP-WD 16,5/10x57 | For 17 mm pilot hole | $25.40 | Add to cart |
| GP-WD 17,5/10x57 | For 18 mm pilot hole | $25.74 | Add to cart |
| GP-WD 18,5/10x57 | For 19 mm pilot hole | $26.26 | Add to cart |
| GP-WD 19,5/10x57 | For 20 mm pilot hole | $26.94 | Add to cart |
| GP-WD 20,5/10x57 | For 21 mm pilot hole | $27.28 | Add to cart |
| GP-WD 21,5/10x57 | For 22 mm pilot hole | $27.97 | Add to cart |
| GP-WD 22,5/10x57 | For 23 mm pilot hole | $28.31 | Add to cart |
| GP-WD 23,5/10x57 | For 24 mm pilot hole | $29.00 | Add to cart |
| GP-WD 24,5/10x57 | For 25mm pilot hole | $29.35 | Add to cart |
| GP-WD 25,5/10x57 | For 26 mm pilot hole | $30.21 | Add to cart |
Return to product description | System 2 page
